Tx Builder - Interact with dApps without writing code

[scalahub]

Motivation

Currently, to craft a transaction, we need to use Kiosk, sigma-rust, Appkit or some other tool, which makes the entry barrier quite high.
Motivated from @anon_real’s Tx Assembler and other proposals, I had been working on a tool to automate tx building for the off-chain components of an Ergo dApp.

The tool, called simply “Tx Builder” can be used to create transactions for participating in several Ergo application protocols. The goal of Tx Builder is to allow people with just knowledge of Json to craft a transaction following certain rules.

Documentation

There is a very short introduction here.
For further details, please refer to the source code here and the examples here.

More details will follow soon.

Example Script

As an example, the following Json can be used for creating a timestamp using the service described here

{
  "constants": [
    {
      "name": "myBoxId",
      "type": "CollByte",
      "value": "ae57e4add0f181f5d1e8fd462969e4cc04f13b0da183676660d280ad0b64563f"
    },
    {
      "name": "emissionAddress",
      "type": "Address",
      "value": "2z93aPPTpVrZJHkQN54V7PatEfg3Ac1zKesFxUz8TGGZwPT4Rr5q6tBwsjEjounQU4KNZVqbFAUsCNipEKZmMdx2WTqFEyUURcZCW2CrSqKJ8YNtSVDGm7eHcrbPki9VRsyGpnpEQvirpz6GKZgghcTRDwyp1XtuXoG7XWPC4bT1U53LhiM3exE2iUDgDkme2e5hx9dMyBUi9TSNLNY1oPy2MjJ5seYmGuXCTRPLqrsi"
    },
    {
      "name": "timestampAddress",
      "type": "Address",
      "value": "4MQyMKvMbnCJG3aJ"
    },
    {
      "name": "myTokenId",
      "type": "CollByte",
      "value": "dbea46d988e86b1e60181b69936a3b927c3a4871aa6ed5258d3e4df155750bea"
    },
    {
      "name": "minTokenAmount",
      "type": "Long",
      "value": "2"
    },
    {
      "name": "one",
      "type": "Long",
      "value": "1"
    },
    {
      "name": "minStorageRent",
      "type": "Long",
      "value": "2000000"
    }
  ],
  "dataInputs": [
    {
      "id": {
        "value": "myBoxId"
      }
    }
  ],
  "inputs": [
    {
      "address": {
        "value": "emissionAddress"
      },
      "tokens": [
        {
          "index": 0,
          "id": {
            "value": "myTokenId"
          },
          "amount": {
            "name": "inputTokenAmount",
            "value": "minTokenAmount",
            "filter": "Ge"
          }
        }
      ],
      "nanoErgs": {
        "name": "inputNanoErgs"
      }
    }
  ],
  "outputs": [
    {
      "address": {
        "value": "emissionAddress"
      },
      "tokens": [
        {
          "index": 0,
          "id": {
            "value": "myTokenId"
          },
          "amount": {
            "value": "balanceTokenAmount"
          }
        }
      ],
      "nanoErgs": {
        "value": "inputNanoErgs"
      }
    },
    {
      "address": {
        "value": "timestampAddress"
      },
      "registers": [
        {
          "value": "myBoxId",
          "num": "R4",
          "type": "CollByte"
        },
        {
          "value": "HEIGHT",
          "num": "R5",
          "type": "Int"
        }
      ],
      "tokens": [
        {
          "index": 0,
          "id": {
            "value": "myTokenId"
          },
          "amount": {
            "value": "one"
          }
        }
      ],
      "nanoErgs": {
        "value": "minStorageRent"
      }
    }
  ],
  "binaryOps": [
    {
      "name": "balanceTokenAmount",
      "first": "inputTokenAmount",
      "op": "Sub",
      "second": "one"
    }
  ]
}

Using with KioskWallet

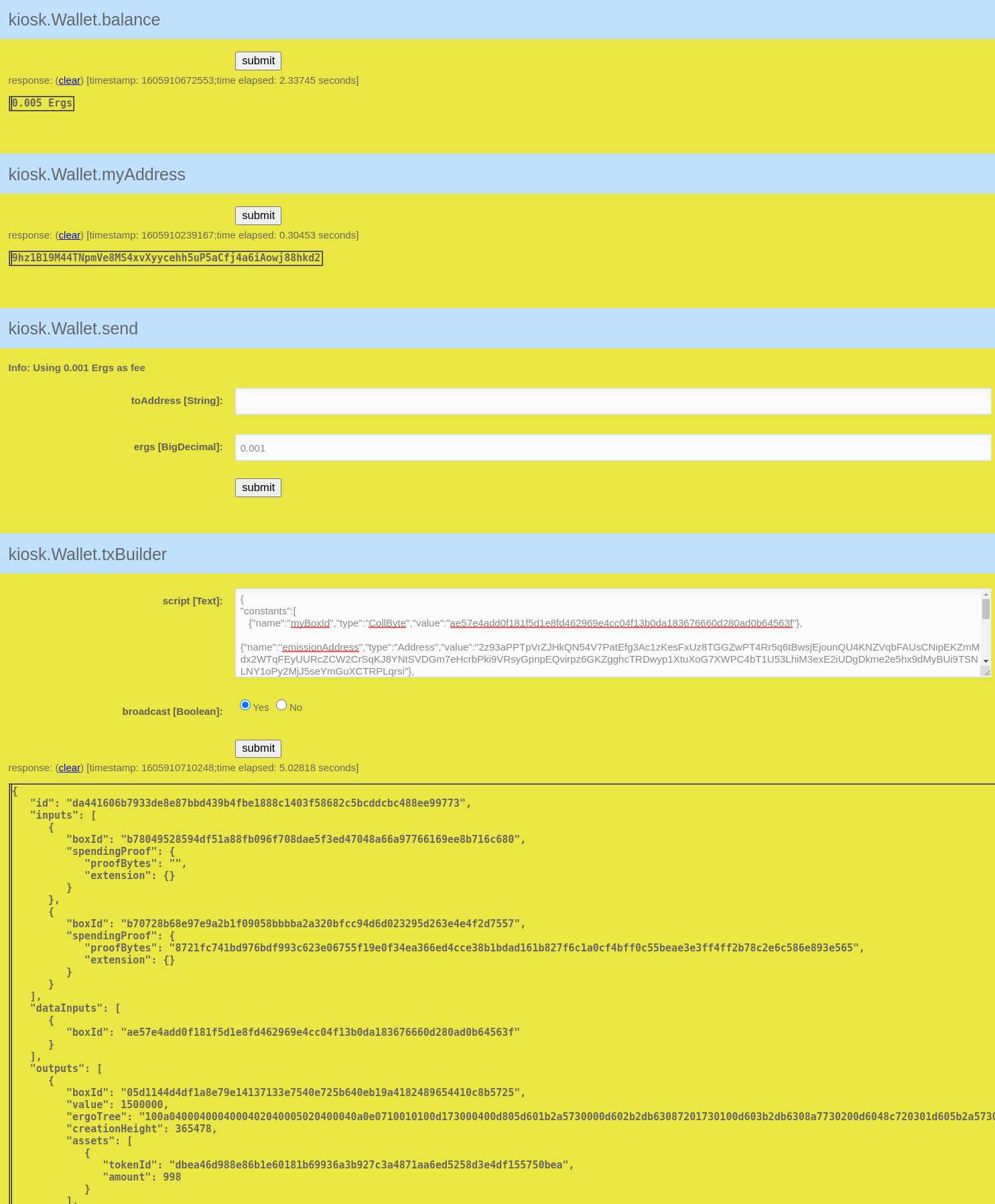

The above script was used to automatically generate this transaction using KioskWallet.

Please refer to the screenshot for details
